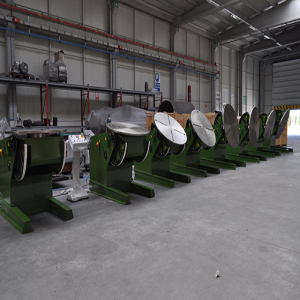

In modern industrial fabrication, the efficiency, accuracy, and safety of welding operations depend heavily on not only the skill of the welder but also the quality of auxiliary equipment. Among these, the Welding positioner is one of the most essential devices. A welding positioner is a mechanical device designed to hold, rotate, and tilt workpieces into the optimal position for welding. It significantly enhances welding productivity by minimizing manual handling, improving ergonomic conditions, and allowing welders or robotic systems to access difficult joint areas with ease.

Heavy and complex workpieces, such as pipes, tanks, vessels, frames, and structural components, are often challenging to manipulate during welding. Without a positioner, operators face difficulties in maintaining consistent weld quality, which can lead to distortion, defects, and wasted materials. By integrating a welding positioner, manufacturers achieve greater precision, reduced rework, and compliance with international welding standards.

Welding positioners are available in a variety of designs, from benchtop rotary tables for small parts to large-capacity tilting and turning positioners for tanks and heavy vessels. With the rapid adoption of automation and robotic welding systems, positioners are now equipped with digital controls, variable speed drives, and synchronized communication interfaces. These features allow seamless integration into automated welding cells and Industry 4.0 manufacturing environments.

Technical Parameters and Specifications

The performance of a welding positioner is defined by its mechanical, electrical, and control specifications. Below are key parameters commonly associated with industrial welding positioners:

1. Load Capacity

• Small positioners: 50–500 kg

• Medium positioners: 500–5000 kg

• Heavy-duty positioners: 5–50 tons

2. Table Diameter

• Standard: 200 mm – 3000 mm (customizable for extra-large vessels).

3. Tilting Range

• 0°–135° or 0°–360° (depending on model).

• Powered hydraulic or electric tilt system.

4. Rotation Speed

• Variable speed control from 0.05–3 rpm (for precision welding).

• Digital inverter drive for smooth acceleration/deceleration.

5. Rotation Motor Power

• 0.5 kW – 15 kW depending on load capacity.

6. Clamping and Fixturing

• Chuck or custom jig mounting.

• Self-centering fixtures for pipe welding.

7. Control System

• Foot switch or hand pendant control.

• PLC/HMI integration for automated lines.

• Synchronized interface with welding robots.

8. Power Supply

• 220V/380V/415V, 50/60Hz three-phase.

9. Safety Features

• Overload protection.

• Emergency stop and interlocks.

• Anti-backlash gear system for stability.

10. Optional Features

• Hydraulic elevating system for adjusting table height.

• Wireless remote control.

• Position feedback sensors for robotic coordination.

Application Scenarios

Welding positioners are used across multiple industries where large or complex components need welding. Key application fields include:

1. Pipeline and Pressure Vessel Fabrication

• Rotating cylindrical tanks, boilers, and vessels for continuous welding.

• Ensures uniform weld penetration and reduces operator fatigue.

2. Oil and Gas Industry

• Welding of pipes, elbows, and flanges.

• Enables consistent circumferential welds with minimal repositioning.

3. Shipbuilding and Offshore Engineering

• Large structural parts, hulls, and frames.

• Assists in accessing awkward angles during long weld runs.

4. Construction and Infrastructure

• Bridges, towers, heavy beams, and columns.

• Improves safety in welding oversized steel structures.

5. Wind and Renewable Energy Sector

• Welding of wind tower sections and turbine housings.

• Allows precise alignment of heavy cylindrical sections.

6. Automotive and Aerospace Manufacturing

• Welding of frames, axles, and engine components.

• Ensures repeatable precision for mass production.

7. Robotic Welding Cells

• Synchronization with robotic arms for fully automated welding.

• Enables “position welding” rather than “out-of-position welding,” improving weld quality.

Operation and Usage Instructions

1. Pre-Operation Setup

• Verify workpiece weight does not exceed rated capacity.

• Secure the component using a chuck, clamp, or custom fixture.

• Inspect the table, tilt system, and rotation mechanism for smooth function.

• Select appropriate welding parameters (speed, tilt angle, rotation direction).

2. Workpiece Positioning

• Tilt the table to align the weld seam with the desired position.

• Use rotation to orient the workpiece for continuous welding.

• Adjust height if using an elevating positioner.

3. Welding Operation

• For manual welding: welder operates torch while controlling positioner speed.

• For automated welding: integrate with robotic arm or manipulator.

• Maintain constant rotation speed for uniform weld bead.

4. Post-Welding Procedures

• Stop rotation and return the workpiece to horizontal position.

• Release clamps and remove finished component safely.

• Inspect weld for uniformity and defects.

5. Safety Considerations

• Do not exceed load rating.

• Use appropriate PPE (helmet, gloves, apron).

• Ensure fume extraction and ventilation.

• Always activate emergency stop during abnormal operation.

Maintenance Guidelines

• Daily: Clean worktable, check for spatter buildup, inspect clamps.

• Weekly: Lubricate gears and bearings, check motor cooling system.

• Monthly: Inspect control system, recalibrate sensors.

• Annually: Replace worn gear components, test load capacity, update firmware.

Frequently Asked Questions (FAQs)

Q1: What is the main purpose of a welding positioner?
A: To rotate and tilt workpieces into optimal welding positions, reducing operator effort and improving weld consistency.

Q2: What types of welding can be performed with a positioner?
A: Suitable for MIG, TIG, SAW, and robotic welding applications.

Q3: Can it be integrated with welding robots?
A: Yes, most modern positioners have PLC/robotic interfaces for synchronized operation.

Q4: What is the difference between a welding rotator and a welding positioner?
A: Rotators support and rotate cylindrical objects (e.g., tanks, pipes), while positioners tilt and rotate workpieces of various shapes.

Q5: How is load capacity determined?
A: Based on the maximum weight the positioner can safely rotate and tilt, considering workpiece center of gravity.

Q6: What is the advantage of variable rotation speed?
A: Allows precise control over heat input and weld bead formation, especially for different joint types.

Q7: Can positioners handle very large workpieces?
A: Yes, heavy-duty positioners can handle loads up to 50 tons with hydraulic tilt and rotation.

Q8: How does a welding positioner improve safety?
A: It reduces manual lifting, repositioning, and awkward welding postures, minimizing injury risks.

Q9: What industries benefit most from welding positioners?
A: Oil & gas, shipbuilding, pressure vessel, wind energy, and heavy steel fabrication industries.

Q10: What is the typical lifespan of a welding positioner?
A: With proper maintenance, industrial positioners last 15–20 years or more.

Advantages of Welding Positioners

1. Increased Productivity – Faster welding cycles with continuous rotation.

2. Improved Weld Quality – Consistent penetration and reduced defects.

3. Reduced Operator Fatigue – Ergonomic working positions.

4. Versatility – Capable of handling pipes, tanks, beams, and irregular parts.

5. Automation Ready – Integration with robotic welding systems.

6. Cost Savings – Lower labor costs and reduced rework.

7. Enhanced Safety – Less manual handling of heavy components.

8. Energy Efficiency – Optimized motor systems reduce power consumption.

9. Flexibility – Customizable for different industries and part sizes.

10. Traceability – Digital monitoring ensures compliance with international standards.

Conclusion

The welding positioner is a critical tool in modern welding and fabrication industries. By enabling controlled rotation and tilting of workpieces, it simplifies welding operations, improves ergonomics, and ensures superior weld quality. Whether in manual workshops or fully automated robotic production lines, welding positioners significantly boost productivity and safety.

Their versatility across industries—from oil and gas pipelines to wind tower fabrication, shipbuilding, and heavy machinery manufacturing—makes them indispensable for companies seeking to remain competitive in today’s global market.

As industrial production shifts toward automation, digitalization, and Industry 4.0, welding positioners will continue to evolve, offering smarter controls, higher load capacities, and seamless integration with intelligent welding systems. For manufacturers aiming to improve efficiency, reduce costs, and ensure long-term quality, investing in advanced welding positioners is not only a technological choice but a strategic one.
